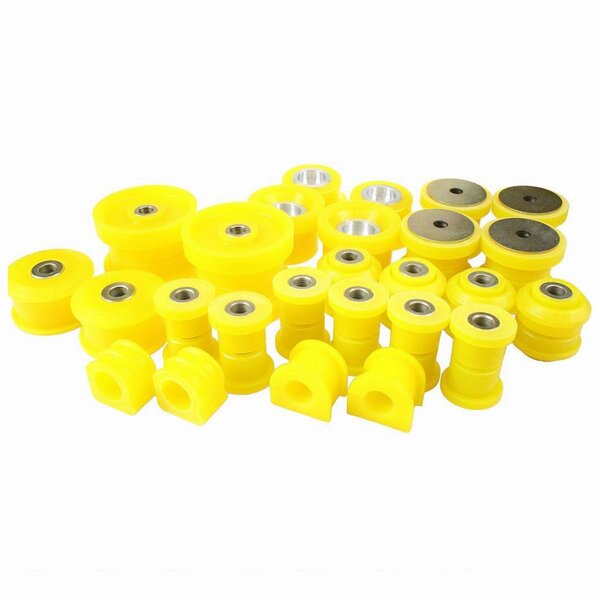

Polyurethane Full Suspension Bushing Kit Sport

KIT ID: 226121A

Name: Full suspension bush kit SPORT

Fit:

Audi S3 99-03

Audi A3 96-03 8L Quattro

Audi TT 99-03 Quattro

Skoda Octavia I 96-04 4x4

Seat Leon & Cupra R 4x4 99-05

Volkswagen Bora 98-05 4x4

Volkswagen Golf IV R32

Volkswagen Golf IV 4x4

Include:

2 x 221088A Front anti roll bar bush SPORT

or

2 x 221089A Front anti roll bar bush SPORT

Diameters:

15,19,20,21,23mm

2 x 221072A Front wishbone front bush SPORT (30mm)

or

2 x 221343A Front wishbone front bush SPORT (45mm)

2 x 221344A Front wishbone rear bush SPORT
or
2 x 221077A Front wishbone rear bush SPORT

4 x 221371A Rear wishbone inner bush SPORT

4 x 221940A Rear tie bar to hub bush SPORT

2 x 221372A Rear lower wishbone front mounting bush SPORT

2 x 221445A Rear anti roll bar bush SPORT

Diameters:

12,13,14,15,16,17,18,19,20,21mm

2 x 221862A Rear diff mount - front bush SPORT

2 x 221863A Rear diff mount - rear bush SPORT

4 x 221864A Rear subframe bush SPORT

Pcs/prod: 26

Required/car: 1

Diagrams:

S2201

S2202

D2207

D2208

D2216

S2206

S2207

NOTE!

In the models in which the "steel cast arm" type arms were mounted, there are two types of front arm bushings. The earlier models were equipped with smaller Ø30mm bush (221072), whereas the later models had Ø45mm larger bush (221343).
The rear bushing for this arm is 221344.

For the "steel pressed / tin" arms, the matching bushes are: 221072 and 221077.

Before ordering, please check the type of the arm carefully. In the case of the "steel cast arm", check the diameter of the front bush additionally (See photo S2201)!

There are two types of front stabilizer bushing.
OLD TYPE - 221088 or NEW TYPE - 221089
Before buying check the type of bush and diameter.
See picture S2202

Hardness: 90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
