Part #: bil47-309975
47-309975: Bilstein B8 6112 Suspension Kit
47-309975: Bilstein B8 6112 Suspension Kit

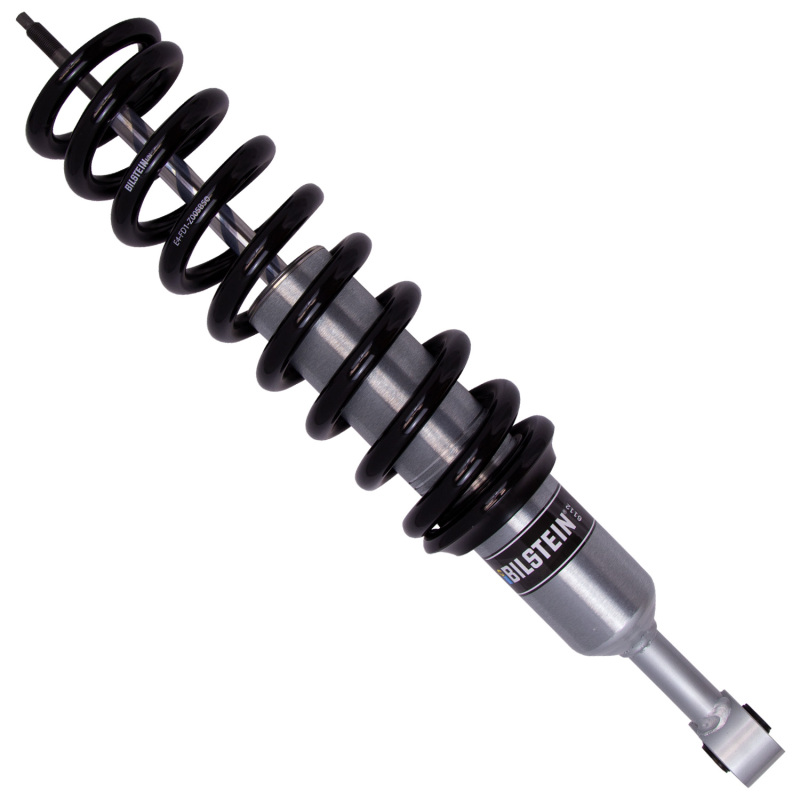

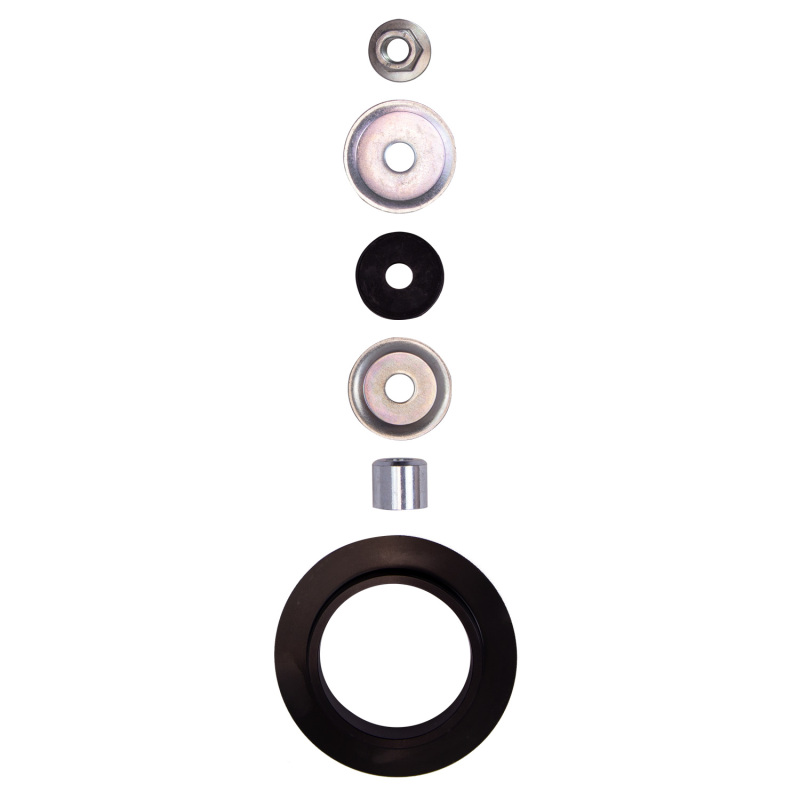

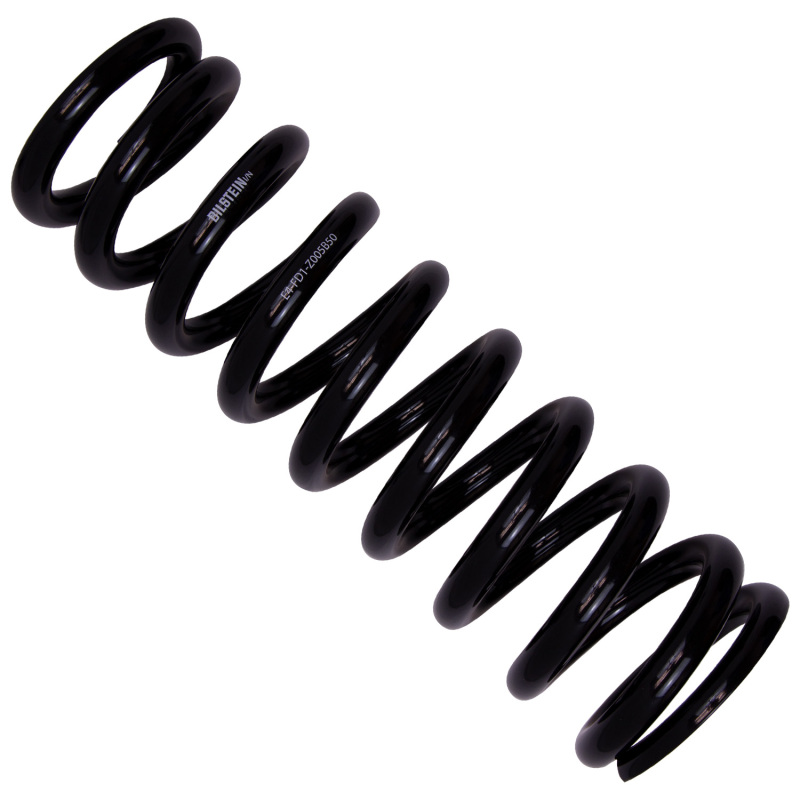

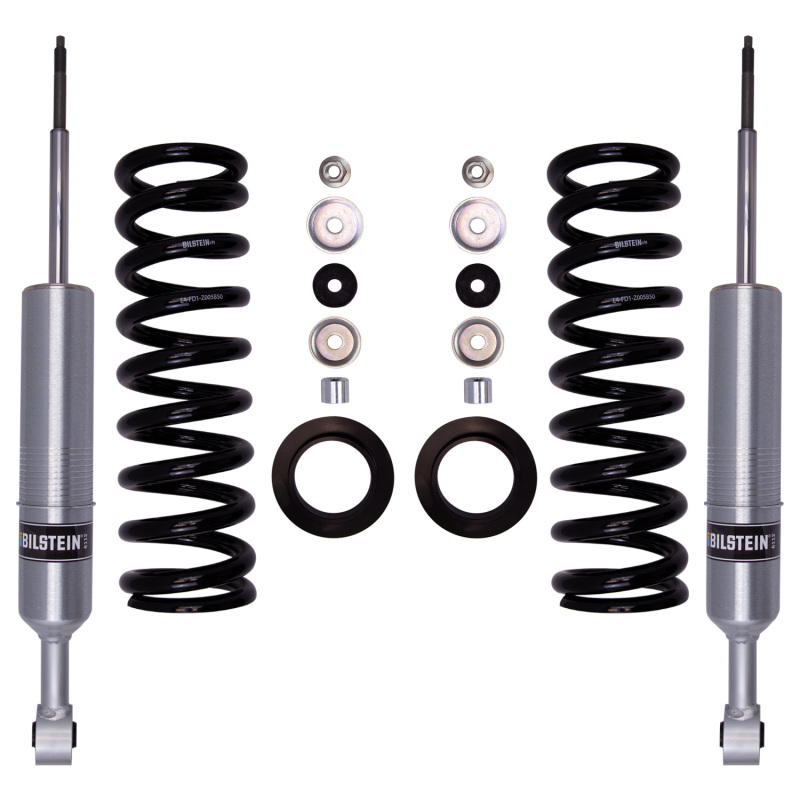

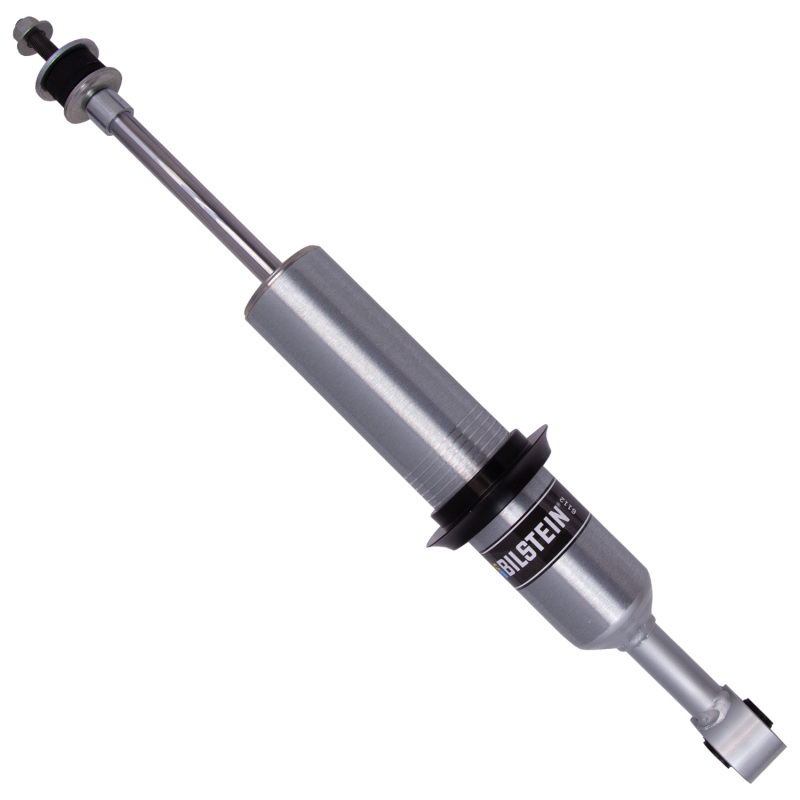

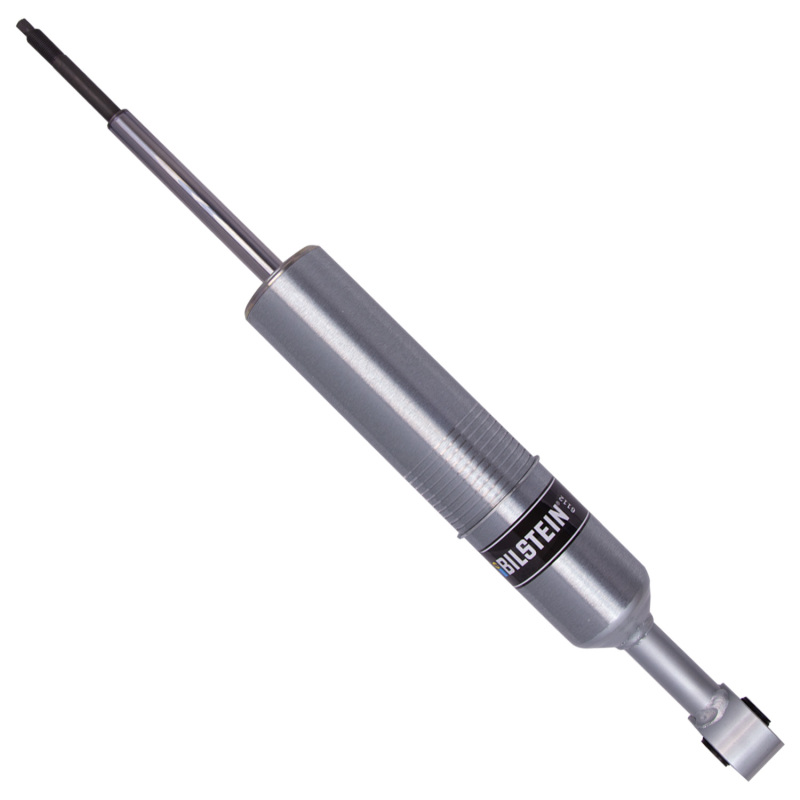

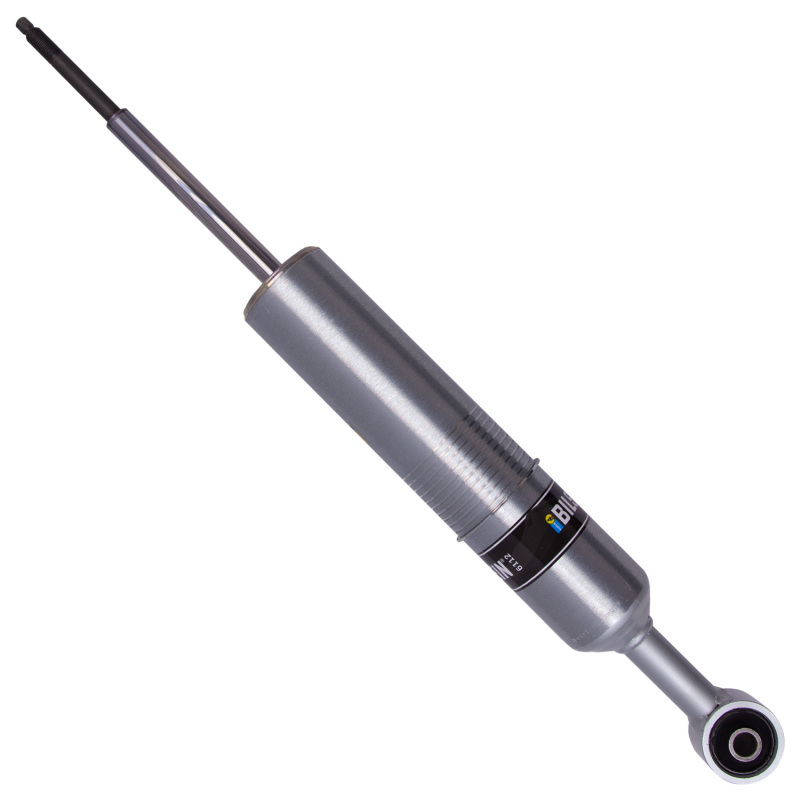

The Bilstein B8 6112 level kit is designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Fixed to the vehicle's original chassis mounting points, these kits consist of (2) 60mm large body shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Components included: 2 x Front Shock Absorbers (left and right), 2 x Coil Springs, 2 x Billet Spring Seats, and All Necessary Mounting Hardware. Part Number: 47-309975. Features and Benefits
Large 60mm body for increased oil capacity, cooling, and long-term durability
Vehicle specific tuning
60mm digressive piston improves ride comfort and control over rough terrain Part Number:bil47-309975
Description: Bilstein 03-09 Lexus GX470 / 05-21 Toyota Tacoma B8 6112 Front Suspension Lift Kit
Finish:Dampers: Zinc Plated/Springs: Black
Spring Seat Included:Yes
Series:B8 6112
Reservoir:No
Title:Bilstein Shock Absorbers
Internal Design:Monotube
Boot Included:No
Body Design:Snap Ring Grooved Body (Coilover)
Segment:Light Truck
PartType:Suspension Kit
Prop 65 (Y/N):Y Piston Diameter:60mm
Shaft Diameter:18mm
Front Main Spring Rate (lbs/in):600
Extended Length (mm):549.0
Collapsed Length (mm):427.3
Extended Length (IN):21.61
Collapsed Length (IN):16.82
Stroke/Travel Length (IN):4.79
Stroke/Travel Length (mm):121.7
Brand:
Bilstein
Weight:
41.5 lbs
Local Storage:
20+ In Stock
Package:
n/a
Fitment:
Lexus GX470 J120 2003-2009
Toyota Tacoma N220 / N240 / N250 / N260 / N270 2005-2015
Toyota Tacoma N300 2016-2021
OEM:
48510-04140
48510-04170
48510-09P90
48510-09Q40
48510-09Q60
48510-60121
48510-69235
48510-69255
48510-69415
48510-80237
48510-80252
48510-80287
48510-80489
