Part #: bil24-292702
24-292702: BIL B8 5100 Series Shocks
24-292702: BIL B8 5100 Series Shocks

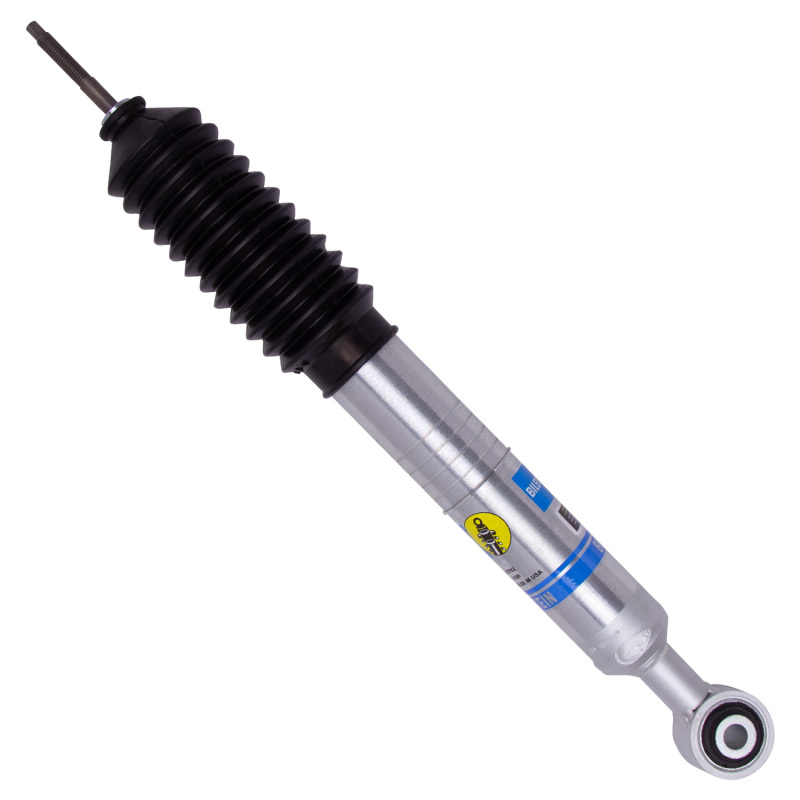

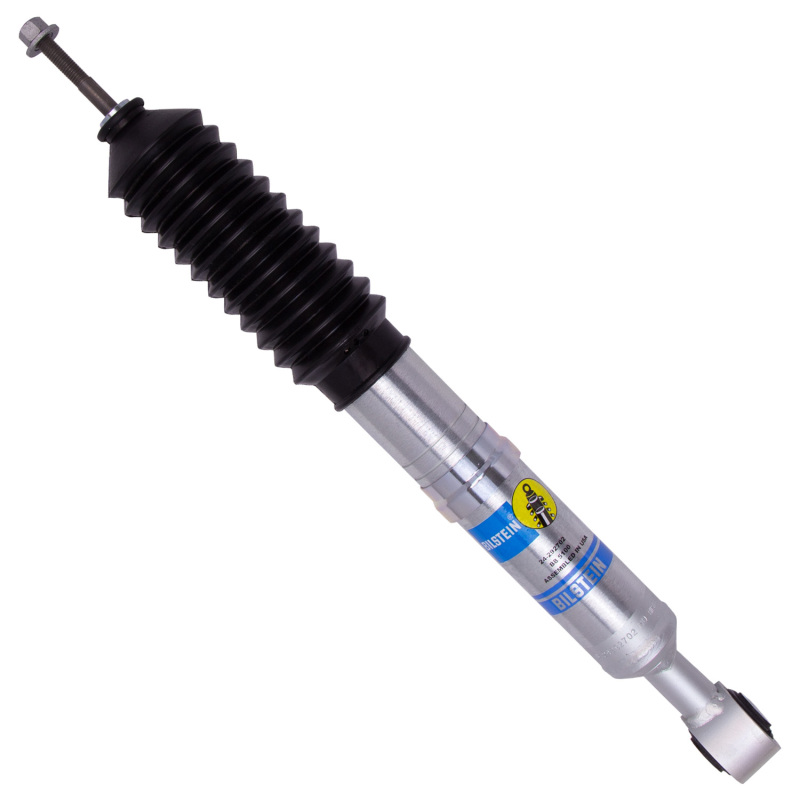

The Bilstein B8 5100 (Ride Height Adjustable) shock absorber is designed for front-end levelling of 2015-2022 GM Canyon and Colorado trucks. Featuring a 46mm monolithic piston and a zinc-plated finish, these shocks utilize multiple snap-ring grooves in the body to allow different spring seat positions, providing a front lift of 0-2 inches depending on the application. This gas-pressurized monotube shock provides consistent, fade-free performance and superior handling on and off-road. Components included in this package:

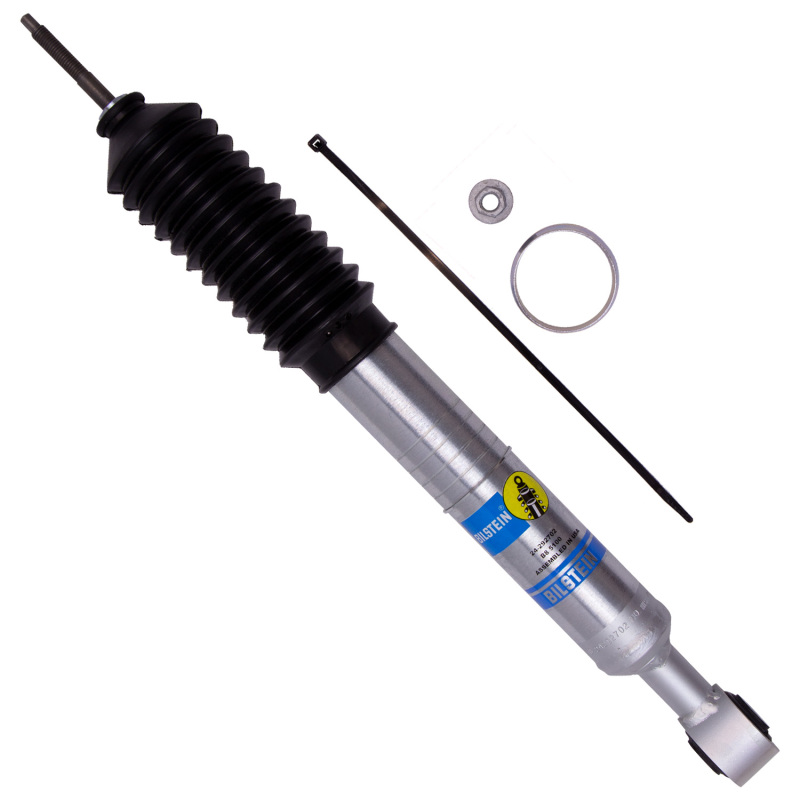

- 1x Bilstein 24-292702 Shock Absorber
- 1x Zinc-plated body assembly
- 1x Lower spring seat
- 1x Snap ring for height adjustment

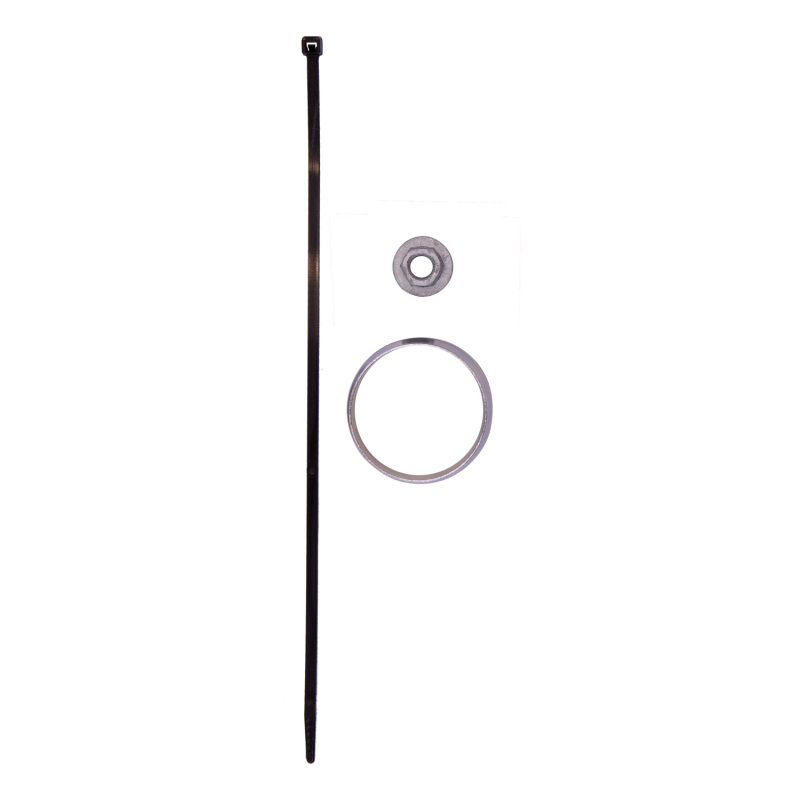

- 1x Installation hardware kit (Nut/Washer) Note: This product is sold individually; two units are required for a complete front axle installation.
Brand:
Bilstein
Weight:
6 lbs
Local Storage:
Out of stock
Package:
n/a
Fitment:
Chevrolet Colorado Base/LT/WT/Z71 Crew/Extended Cab 2WD/4WD 2015-2022
GMC Canyon Base/Denali/SLE/SLT/AT4 Crew/Extended Cab 2WD/4WD 2015-2022
OEM:
23242002
23464580
23464581
84149544
84149545
84531818
84531819
